| Szereg: | AMP SUPERSEAL 1.0 | Szpilka: | 26 Kołek |
|---|---|---|---|
| Nr części żeńskiej: | 3-1437290-7 | Nr części męskiej: | 9-6437287-8 |
| Tworzywo: | Obudowa PA66+GF, zaciski z miedzi cynowanej/pozłacanej | Zakres temperatur: | -40℃~+125℃ |
| Ocena wodoodporności: | IP65 | ||
| Podkreślić: | 26-Pin Automotive ECU Connector,3-Slots Automotive ECU Connector,Superseal Automotive ECU Connector |
||

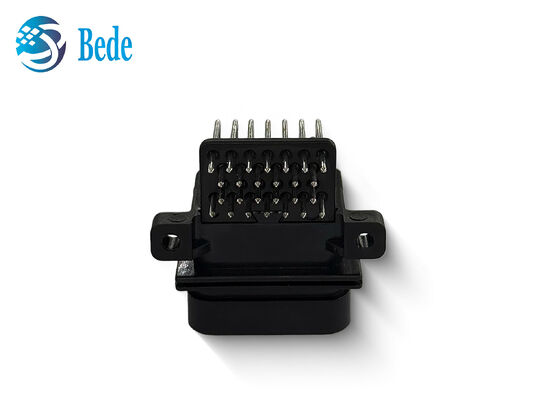

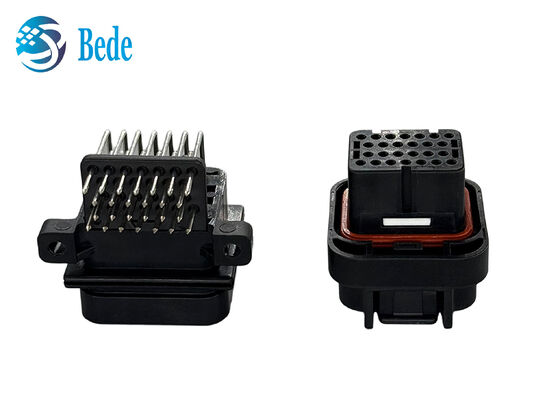

AMP 3-1437290-7 26-Pin Superseal Automotive ECU Connector 3-Slots 6437288-4
The 26-pin AMP SUPERSEAL 1.0 connector is engineered for harsh automotive environments. This complete assembly includes a right-angle male PCB pin header (for soldering to ECUs and control modules) and a female wire harness socket with an integrated red rubber seal, ensuring reliable wire-to-board connections and excellent sealing performance. Compact, durable, and high-performance, it is an ideal solution for demanding automotive electronic applications.
Product Specifications
Component
Features
TE Part Number
Specification
Pin / Cavity Count
26 positions (24 signal positions + 2 dummy blind holes, 4-row layout: 6+7+7+6)
-
Multi-signal & power transmission
Contact Pitch
1.0mm
-
Standard SUPERSEAL 1.0 spacing
Rated Current
Up to 15A per contact (compatible with 0.5~1.25mm² automotive wire harness)
-
High-current automotive application
Operating Temperature
-40℃ to +125℃
-
Engine bay suitable
Housing Material
PA66+GF (glass-filled nylon, UL94 V-0 flammability rating)
-
High-strength automotive-grade material
Contact Material
Copper alloy, gold-plated / tin-plated finish (anti-oxidation, enhanced conductivity)
-
High-reliability electrical contact
Mounting Style
Male: right-angle PCB solder type; Female: wire harness crimp type
-
PCB & wire harness installation
Male Header (PCB Side)

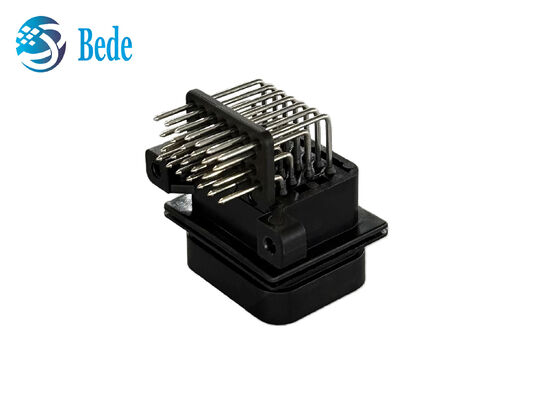

Black PA66+GF, 26-pin right-angle pins, mounting holes
9-6437287-8
Right-angle PCB solder type
Female Housing (Wire Side)

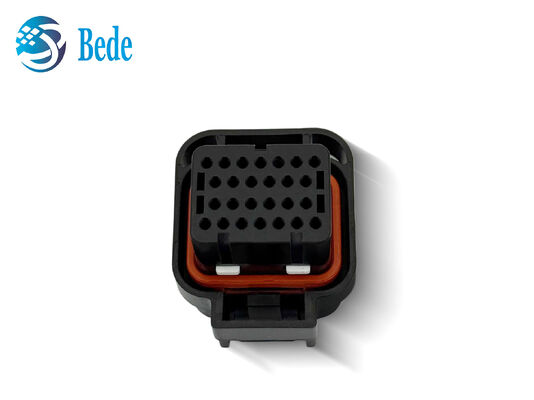

Black PA66+GF, silicone seal, 26-hole 4-row layout, latch
3-1437290-7
Wire-to-board, IP65
Product Features
Applications
Installation: Solder male header to PCB; crimp female housing to harness and lock.
Notes: Avoid seal damage, align correctly, operate within rated specifications, and install in a clean environment.
