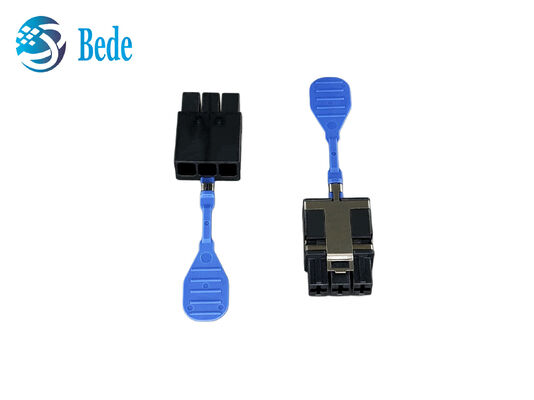

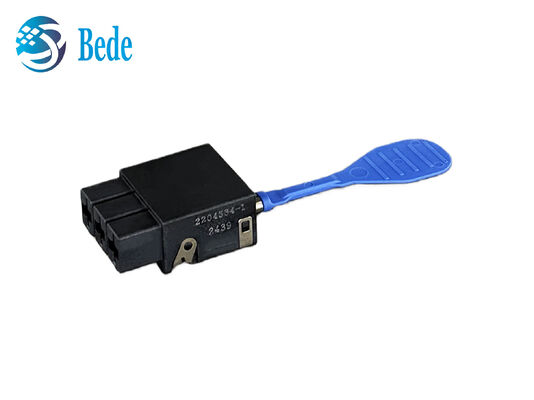

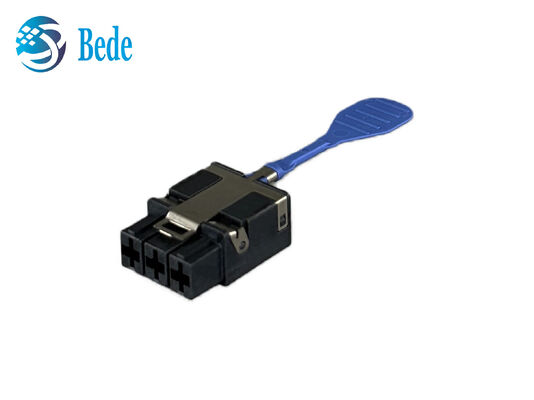

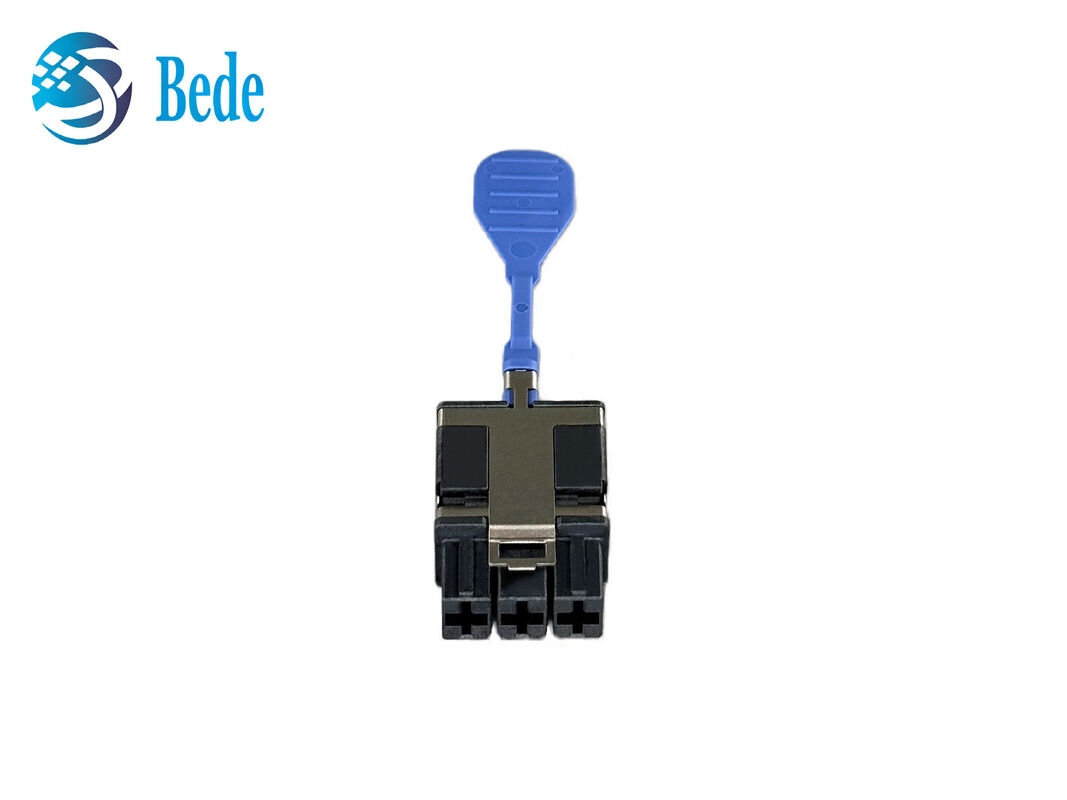

2204534-1 TE Connectivity ELCON MINI Series 3P Connector Housing

The 2204534-1 is a high-density, low-profile 3-position heavy-duty power plug housing from TE Connectivity's ELCON Mini series. It features a space-saving 8mm profile height and is engineered to deliver reliable high-current power distribution in space-constrained Wire-to-Board applications. It is equipped with an integrated plastic pull-tab for safe, easy extraction in dense electronic enclosures.

• Integrated Pull-Tab: Allows easy, toolless disconnection in dense racks without damaging wires
• Positive Locking: Features an internal latch mechanism to prevent accidental unmating from vibration
• Polarized Housing: Designed with physical keying to block incorrect insertion or reverse orientation
• LCP GF30 Base Material: Molded from 30% glass-filled Liquid Crystal Polymer for elite thermal stability

• Server Power Supply Unit (PSU) Output: Connecting the main internal AC/DC or DC/DC converter brick directly to the server motherboard to supply high-current power to processors
• Industrial Control Cabinet Backplanes: Powering Programmable Logic Controllers (PLCs) and input/output (I/O) modules mounted inside cramped electrical enclosures
• Telecommunications & Wireless Infrastructure

1. Custom connector plastic parts, such as insulator, nut, housing etc.
2. Custom connector internal conductors, male and female pins, with silver or gold plating
3. Custom connector accessories, such as silicone rings and dust covers
