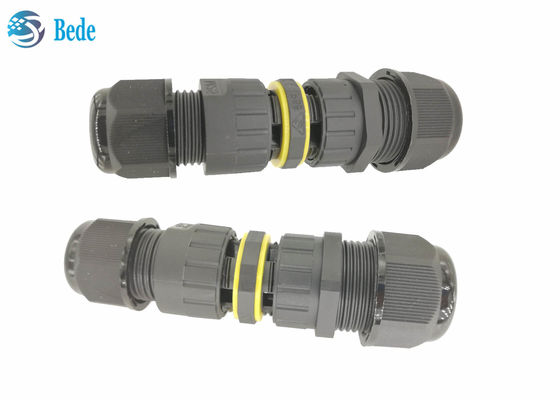

BEDE Outdoor IP68 5 Pin Waterproof Connector Output 2~4 Wires

Waterproof Cable Connector For Outdoor Use IP68 5 Pins Output 2~4 Wires

Application:

  Good waterproof performance, used for circuit connection of outdoor lamps and electrical equipment, advertising light boxes, street lights, underwater lights, garden lights, music fountains, etc.

Electrical properties:

Advantage of this waterproof connectors

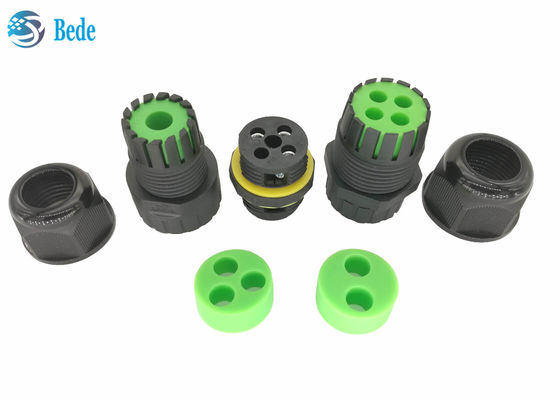

3 kinds of sealing rings at the input end to choose from, various diameters of wire can be used

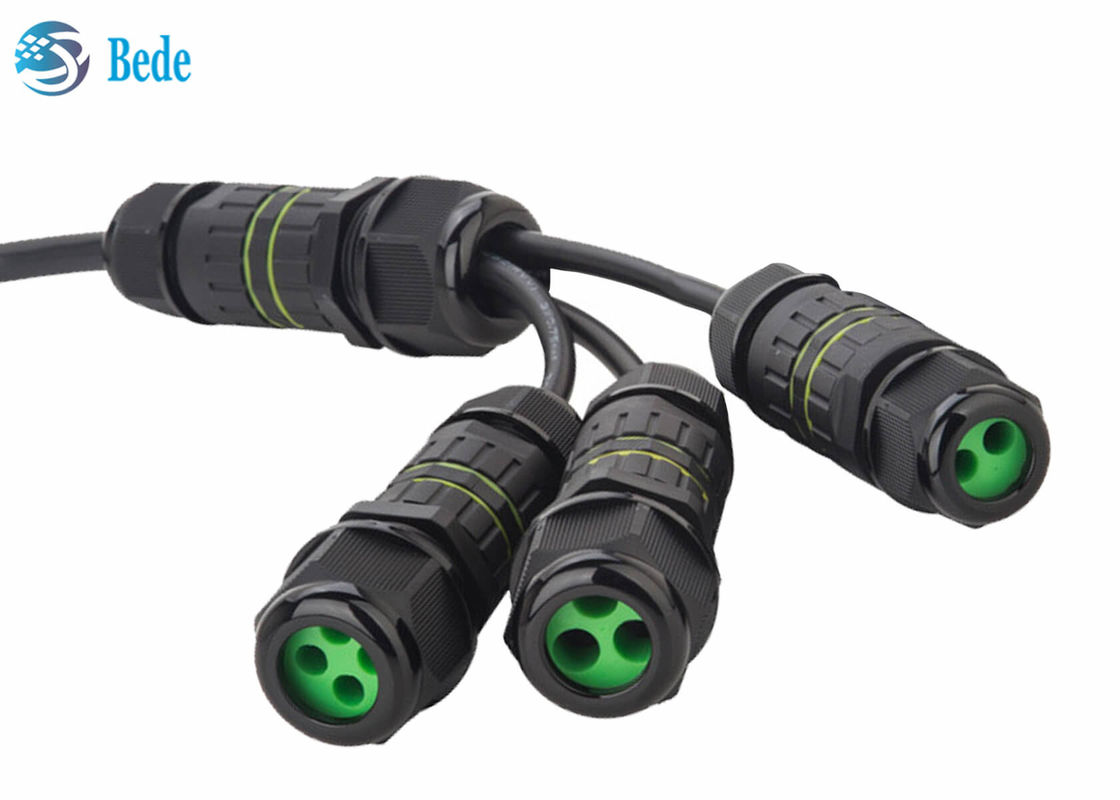

4 kinds of sealing rings at the output end to choose from, corresponding to the output of one wire to 4 wires,

Applicable temperature -40~105 ℃, no matter tropical, frigid, winter, summer, can be used all

How to use

1. Unscrew the nut and take out the terminal
2. Strip the insulation layer of the wire, the outer layer is 19~23mm, and the inner layer is 8~10mm
3. Connect the wires from the output in parallel and insert into the terminal block, then tighten the screws
4. Insert the wire of the input end into the corresponding hole of the terminal and tighten the screw
5. Tighten the waterproof nut to complete
