Kompleksowy dostawca złączy i rozwiązań wtryskowych
Obroty:
|
Szczegóły Produktu:
Zapłata:
|
| Typ mocowania: | Mocowanie do tablicy | Szpilka: | 35 Pinów |
|---|---|---|---|
| Nr części żeńskiej: | 1-776164-1 | Nr części męskiej: | 1-776231-1 |
| Tworzywo: | Czarny PA66+GF (UL94 V-0), stop miedzi (cynowany/pozłacany) | Zakres temperatur: | -40℃~+125℃ |
| Ocena wodoodporności: | IP67 | Liczba rzędów: | 3 |

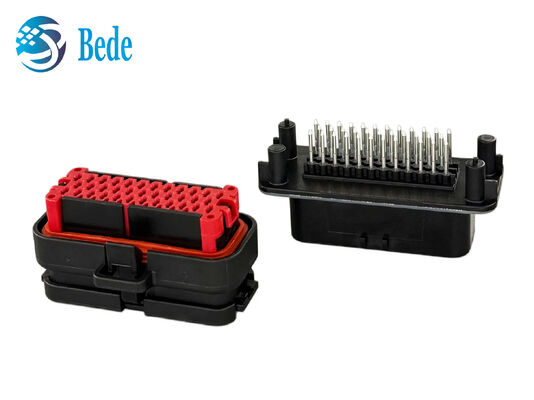

| Podkreślić: | 35-Pin Automotive ECU Connector,1-776164-1 Automotive ECU Connector,AMP Automotive ECU Connector |
||
| Component | Features | TE Part Number | Specification |
|---|---|---|---|
| Part Number | 35POS, pin dia 1.3, HDR Assy, 180deg, COD 1 | 1-776231-1 | Vertical through-hole PCB header |
| Rated Current | Up to 17A per contact, gold-plated mating area | - | Power & signal circuit applications |
| Mounting Style | Vertical, through-hole solder termination to PCB | - | Wire-to-board connection |

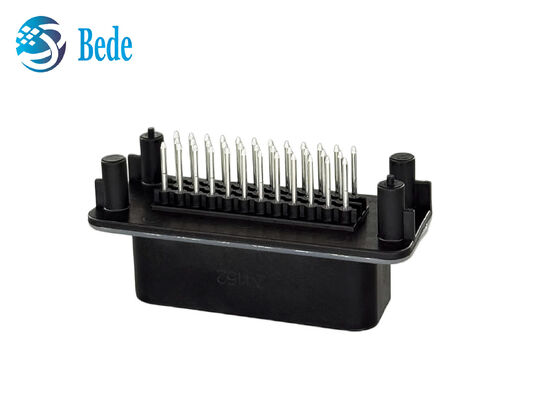

| Header Type | Fully shrouded, 35 vertical pins, 3 rows, 4mm pitch | 1-776231-1 | Vertical PCB male header |

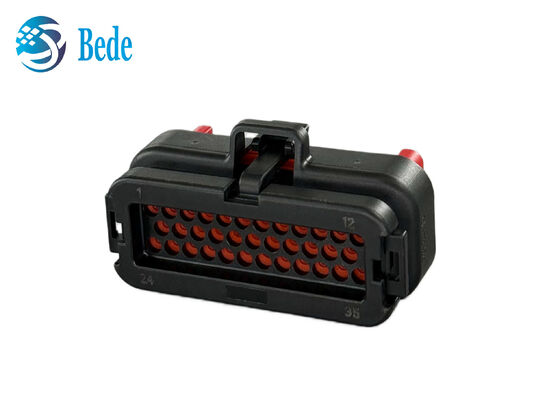

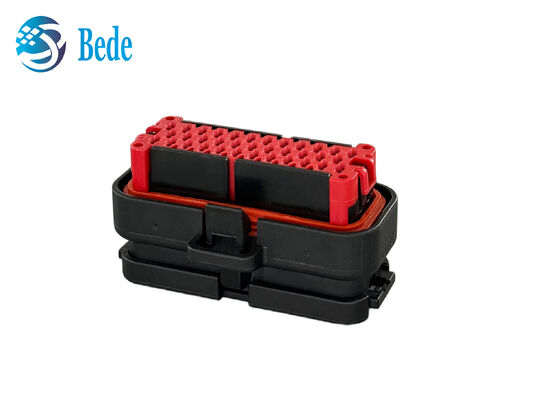

| Female Housing (Wire Side) | Integral silicone seal, red secondary lock, latch | 776164-1 | IP67 waterproof female connector |
| Sealability | Sealable design | - | Suitable for sealed environments |
| Housing Features | Black housing, keying code 1, UL 94V-0 flammability rating | - | Robust industrial construction |
| Operating Temperature | -40°C to 125°C | - | Wide-range environmental compatibility |
