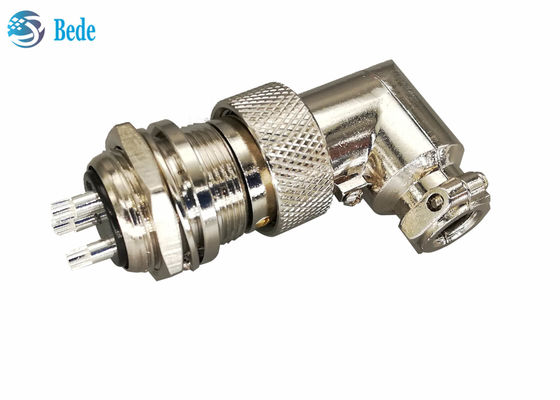

2~5 Pin GX16 Aviation Connector 90 Angle Male And Rear / Front Mounting Female

GX16 Aviation Connector Cable To Cable docking connectors 2~10 Pin 4~7A 200V

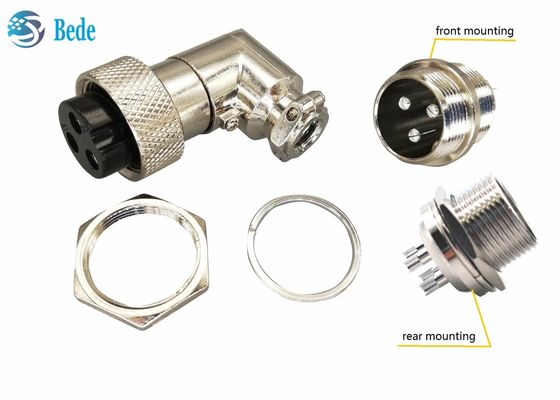

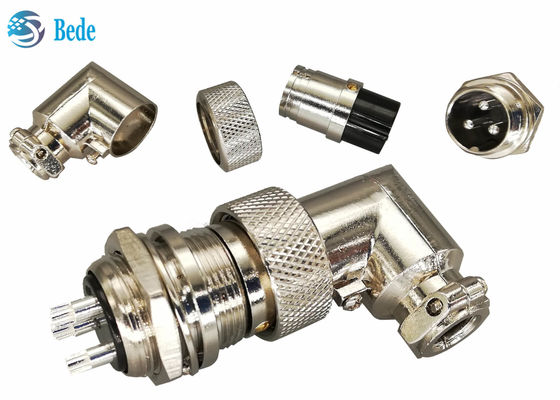

Structure

1. Male connector, housing material is zinc alloy with nickel plated, contact pins material is brass with silver plated

2. Nut and washers, stainless steel material

3. Female connector, housing material is bakelite and contact pins material is brass with silver plated

4. housing of female connector,zinc alloy with nickel plated,

5. nut for fix male and female after connection

6, Housing of cable, 90 angle,zinc alloy with nickel plated,

Notice:

1. Usually silver, if black color is needed, can be customized, minimum order quantity 500pcs

2. About the male connector, there are two models of front mounting and rear mounting to choose from

Electrical data

All familier

About GX16 aviation connector, M16 circular connectors, all models as following, please feel free to contact us, or return to the product catalog to know more if you are interested.

1.Panel mounting model-- front mounting

2.Cable docking model

3.Panel mounting model--Rear mounting

4.Panel mounting model with round flange

5.Panel mounting model with square flange

6.Panel mounting model with rhombus flange

7.PCB welding model with elbow pins

8.PCB welding model with straight pins

9.Panel mounting model with right angle--front mounting

10.Waterproof cable docking model

11.Waterproof panel mount model

12.Panel mounting model with right angle--rear mounting
